Ring making machine

Ring making machine
Steel Wires: MS,GI,SS, etc
Thickness of wires: 2.5-6mm

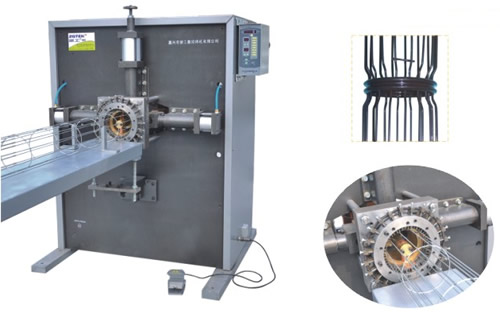

Filter cage welding machine line

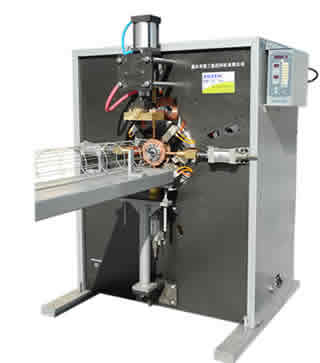

Cage welder

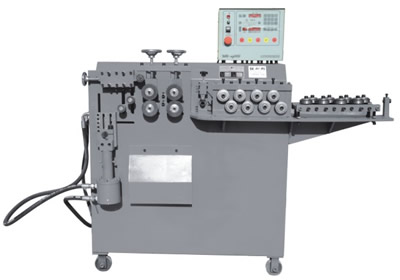

Auto ring making machine,
Model: DQ1000K
Input voltage: 380V (3-phase)
Power freq.: 50Hz/60Hz
Rated power: 2.2KVA
Ring diameter: less than 500mm
Wire thickness: 2.8-6mm
Ring diameter: 90-400mm
Cooling method: water cooling
Features
Hydraulic motor transmission, input power only 2.2KVA, smooth, fast and accurate loading, forward or reverse rotation
Electromagnetic oil valve, high-end oil pump with custom made oil disk provides stable oil pressure and variable speed
Capable of saving up to 15 parameters, works easily with different ring radiuses and arcs
Digital display, good for accurate and fast control
6-digit counter, easy to manage order quantity
Reserved connector for extended functions
Note: if input voltage is not 380V, a 3KVA 3-phase transformer is needed
