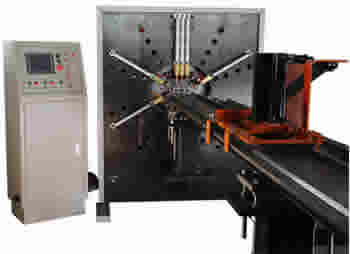

Oval cage welding machine line

Oval cage welding machine line
1.CNC control
2.Multi-spot weld
3.Pull by step motor
4.Ring space precision:0.
Oval cage welding machine line
Oval cage welding machine, flat filter bag cage welder

Model Qty of Vertical wire Ring space Cage diameter(mm) Control unit
DLN-16B 8,10,12,14,16 No restriction 66x148(other sizes optional) KD-DL08D

General Specification
Input voltage: 380V
Power frequency: 50Hz
Cooling method: natural cooling
Air pressure: 0.6-0.8 MPa
Insulation grade: F
Power capacity: 80 KVA
Working load: 20 KVA
Air flow: 300 L/min
Features

1. Rails (7500mm) and material shelf (7500mm) equipped and connected to the welding unit.
The front end of the rail is adjustment-free. Good linearity can be
achieved for wire cages.
2. Equipped with auto feeding unit, no restrictions on ring space.
3. Positioning mould manufactured with wire-cutting process, it features high accuracy, good
insulation and long life.
4. Four air tanks, short air route inside the machine ensures quick response of the cylinder.
5. 25mm front plate resulted from one-time machining, firmly secure that the welding cylinders
are on the same plane and perpendicular to the axes, thus the linearity of the cage can be
ensured.
6. Air valves (Airtac) together with stroke-adjustable cylinders increase welding speed,
pre-pressing only takes 0.08s.
7. Controlled by micro-computing unit.
8. Time-sharing power-on transformer reduces the burden on local electricity grid.
