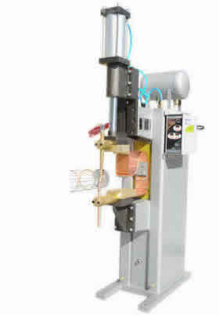

Bottom welder of cage welding line

Bottom welder of cage welding line
1.To weld bottom cap of filter cages to cage bottom
2. High speed
3.Spot weld
Bottom welder of cage welding line

General Specification
Model: DX-80/DX-50
Input voltage: 380V or 220V
Power frequency: 50/60Hz
Cooling method: water cooling
Air pressure: 0.6-0.8 MPa
Insulation grade: F
Power capacity: 80/50 KVA
Working load: 35 KVA
Water flow: 3 L/min
Air flow: 200 L/min

Features
Specifically designed cyclinder ensures stable air pressure and welding speed
One-piece machine body secures its rigidity
Adopting KD-08A controller and reliable welding loop
Top support locating flange and adjustable stand ensures the perpendicularity between the support and cage axis
Top cap welder is also applicable for welding connecting rings for multi-section cages
