Kamera Schwenk-Neigesystem Panasonic

Kamera AW-E600 (PAL) mit Fujinon 7,3-102 mm Optik Full Control
ccd
1. Digital video signal processing for high quality, high
reliability, high performance, lightweight and compact
size.
2. Resolution: 850 lines (HIGH BAND DTL: ON), S/N
ratio: 65 dB (DNR ON)
3. Minimum illumination: 0.25 lux (F1.4, Night eye
HIGH mode)
4. SET UP menu for system check and readjustments.
5. Built-in automatic controls, including ATW, ELC,
and AGC
6. CCD readout is switchable between field and frame
modes. Vertical resolution can be stepped up in
frame mode and it is effective for shooting still
objects.
The AW-PH300 is a compact pan/tilt head capable of
tilting up to 95 up or 95 down and panning up to
300 . It is mounted upright or suspended.
The pan/tilt head carries a camera and lenses for a
total weight of 4 kg.
The pan/tilt head can be directly controlled using the
Pan/tilt Control Panel AW-RP301 or AW-RP305.
Netzteil AW-PS 300

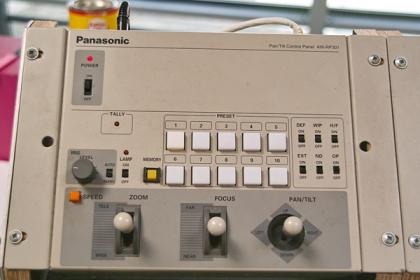

Steuerung AW-RP 301
Es kann stufenlos Pan/Tilt, Zoom, Fokus, Iris gesteuert werden. Für alle Funktionen stehen 10 Speicherplätze zur Verfügung.
Netzteil AW-PS 301
