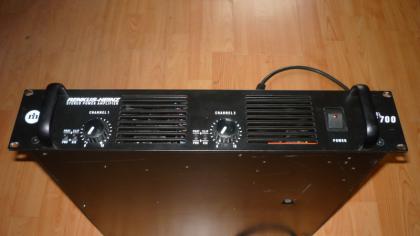

Renkus Heinz P2700 Endstufe 2x500W

POWER OUTPUT RATINGS 8 Ohms 350 4 Ohms 500 watts bridged 8 Ohms 1000 FREQUENCY RESPONSE 0.0, -.5 dB, 20 Hz to 20 kHz THD at 1kHz DISTORTION 0.1 RPO 4 Ohms SMPTE IMD 0.015 HUM NOISE -100 dB referred to RPO 8 Ohms, 20 Hz to 20 kHz CROSSTALK 60 dB 400 Hz INPUT SENSITIVITY 1.4 V for RPO 8 Ohms INPUT IMPEDANCE 20 K Ohms, balanced VOLTAGE GAIN 42 SLEW RATE 40 v usec DAMPING FACTOR 400 at 8 Ohms MAX. VOLTAGE SWING - 90 Vp P2700 POWER REQUIREMENTS 200 230 VAC, 50 60 Hz 1440 VA FEATURES Temperature, DC at output, and short circuit protection Delayed turn-on w output muting Subsonic and ultrasonic filters Signal Status LEDs COOLING Front- to-rear variable speed DC fan CONSTRUCTION All steel closed-box chassis 3 16 aluminum face panel FINISH Black powder coat CONTROLS FRONT MOUNTED Input level attenuators, power on off, REAR MOUNTED Stereo mono bridging mode selector, Ground Lift Switch REAR PANEL CONNECTORS Inputs 3-pin female XLR x2 Looping output male XLR x2 Outputs 4-pin Neutrik Speakon DIMENSIONS H X W X D 3 1 2 H x 19 W x 18 D depth behind panel 8.9 cm x 48.2 cm x 45.7 cm NET SHIPPING WEIGHT 35 lbs 15.9 kg ASSOCIATED EQUIPMENT C12, C22 L20 controller modules R-H R-Control Remote Control Monitoring System
